Request Migration

Request Migration#

Workflow#


Request selection for migration#

Migration Type#

Metrics classify requests by resource use, processing stage, and inherent migration cost.

  • num_req (Number of Requests): Total requests on a resource. Simple, but doesn’t reflect individual request complexity or progress.

  • num_tokens (Number of Tokens): For LLMs, total tokens (input + generated). Indicates processing progress and KV cache size, influencing migration cost.

  • block_ratio (Block Ratio): For LLMs, KV cache memory block usage. Directly reflects memory footprint; lower ratios mean cheaper migration.

Priority#

Request priority is beyond simple resource usage, directly linked to criticality and user experience. Migration policies dictate which requests are prioritized for migration.

Common policies include:

  • SR (Shortest Running): Favored for migration due to lower cost and impact.

  • LR (Longest Running): Typically avoided for migration unless critical, due to higher cost and impact.

  • FCR (First Running): Selects the oldest active request.

  • LCR (Last Running): Targets the newest active request.

  • FCW (First Waiting): Prioritizes requests that have been queued longest, improving fairness or throughput for backlogged tasks.

  • FCWSR (First Waiting and Shortest Running): A hybrid policy designed to optimize for quick clearance of smaller tasks that have also waited the longest.

Pre-stop Migration#

Pre-stop migration in this context refers to a mechanism to proactively migrate in-flight requests from an unexpectedly stale or unhealthy instance to prevent request loss before it fully terminates, ensuring service continuity during failures.

This process is triggered when an instance’s update interval exceeds a predefined threshold set by a rescheduler. Upon identifying such a “stale” instance, the rescheduler initiates pre-stop migration by attempting to migrate all running/waiting requests from the stale instance to healthy, available instances.

Concurrency limitation#

Concurrency limitation is a vital mechanism for controlling the overhead of migration and ensuring system stability. These limits are applied across several dimensions, often in combination:

  • num_req ： Limits the total number of individual requests that can be simultaneously in the process of migration.

  • num_tokens : Imposes a ceiling on the aggregate number of tokens involved in all currently migrating requests.

  • kv_cache_usage : Sets a maximum on the total memory footprint of the KV cache across all requests currently undergoing migration. This can be measured in blocks usage ratio.

KV transfer#

Supported connectors & backends#

The transfer of KV Cache state relies on an migration backend. The backends can utilize either the open-source Mooncake Transfer Engine or our solution, Blade-KVT.

  • Mooncake Transfer Engine: A general-purpose, community-driven open-source backend. It provides a versatile and widely adopted standard for distributed KV cache transmission.

  • Blade-KVT: Our natively developed transfer solution that we have also open-sourced to the community. While Mooncake focuses on broad generality, Blade-KVT is tailor-made and deeply optimized for our specific serving architecture. It provides seamless integration and out-of-the-box high performance for our customized scheduling systems.

Similar to PD disaggregation, initiating a migration also depends on the KV connector （commonly activated by specifying the --kv-transfer-config parameter. And to enable migration triggering, the existing connector interfaces must be extended. This extension involves adding new interfaces  specifically for initiating migration tasks. Both Mooncake Connector and Hybrid Connector are currently supported.

KV connector implementation#

KV connector extension#

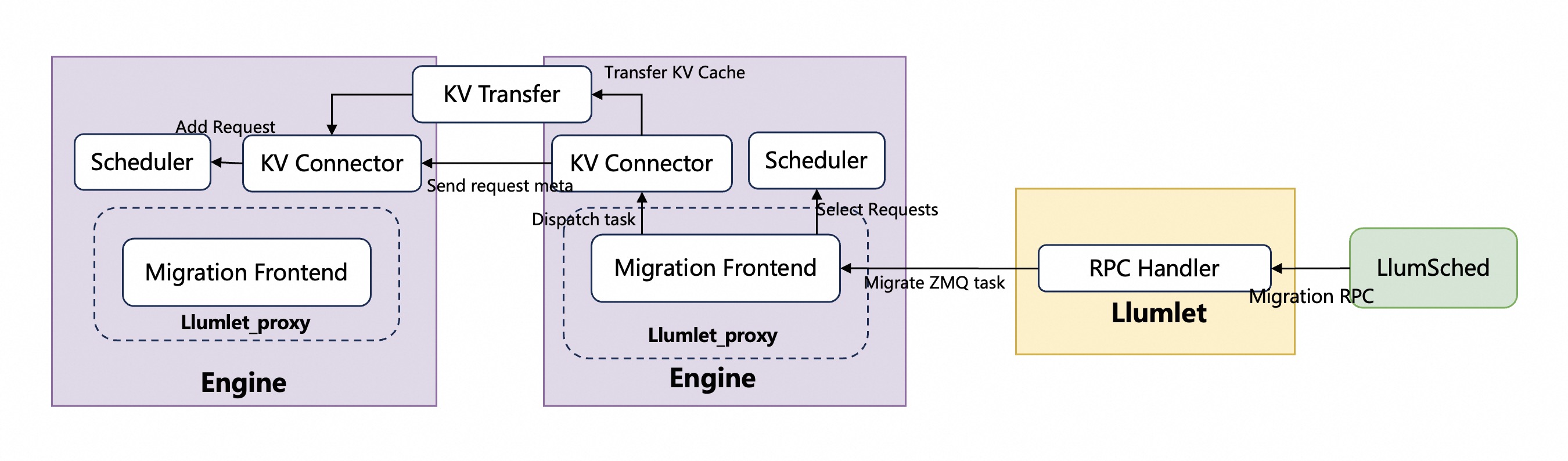

To enable migration, we will extend the KV connector’s interfaces and add migration-triggering logic within the enginecore’s main loop. The key logic is inserted at kvconn_outputs = kvconn.step(), which is responsible for processing incoming migration requests. We added RPC handlers to the KV connector to process migrate-in requests and pre-allocate KV blocks. After the KV cache is successfully transferred, the request will be added to the scheduler’s waiting list.

Bypass-migration#

To reduce migration overhead and to support failover-triggered migration, we introduced a bypass path that operates independently of the enginecore’s main loop, handling both triggering and execution asynchronously.

Token forwarding#

token_forward

API Server Address-Aware#

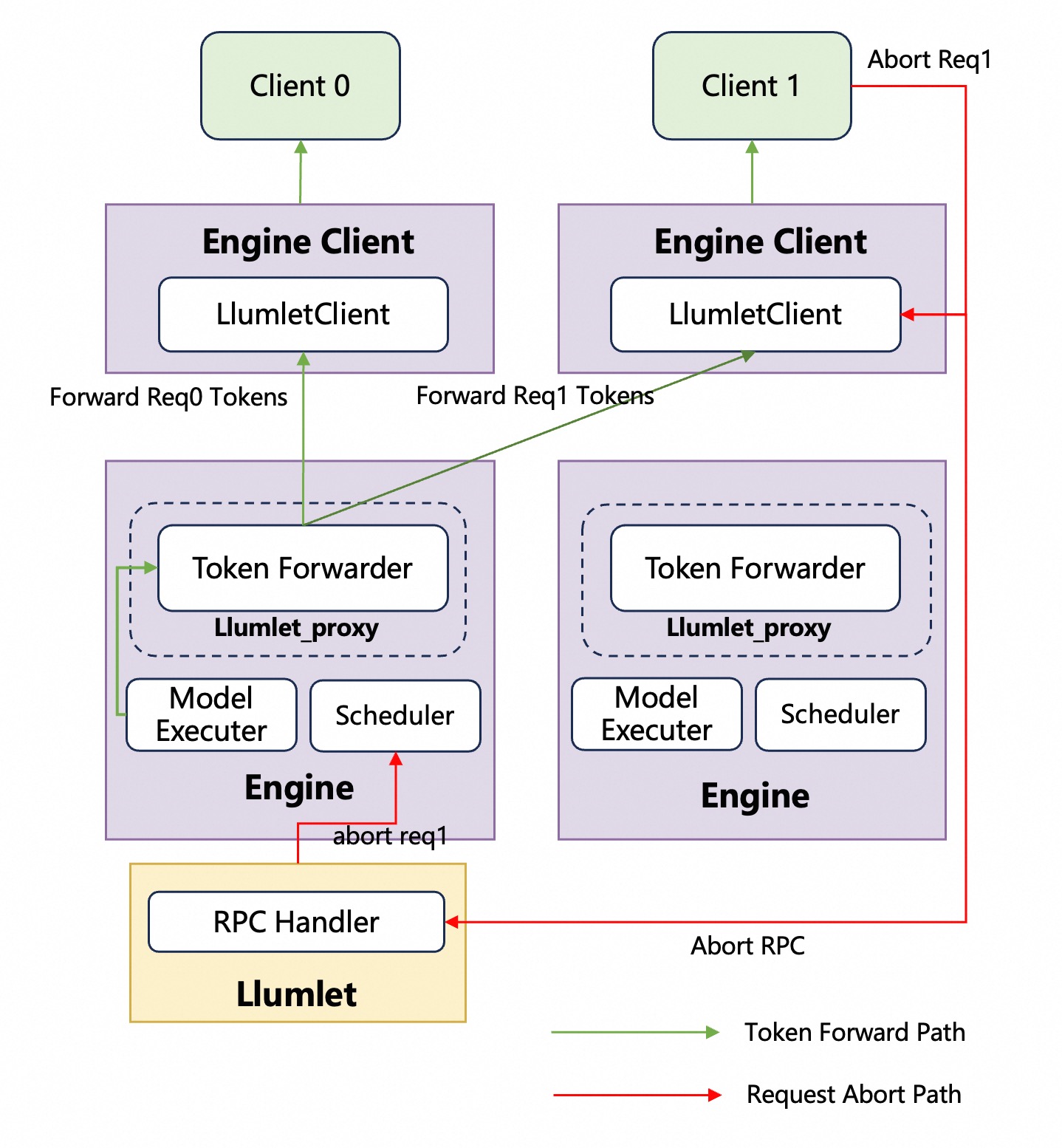

To enable token forwarding back to the original requesting EngineClient, every request carries the address of LlumnixClient. When a request is received by the API server, LlumnixClient stores a ZMQ address within the request’s metadata, and this metadata is then propagated to the EngineCore. The address is maintained throughout the request’s lifecycle and it is not altered, regardless of any migration that happens.

Abort Request Handling#

In situations where requests are subject to migration, a challenge emerges: the original EngineClient might issue an abort command, or the request’s output could trigger a stop string. To correctly handle this, LlumnixClient is required to first send an Abort RPC to Llumlet, leveraging the Llumlet address provided within the EngineCoreOutput. Subsequently, Llumlet will forward this abort request to the EngineCore.
